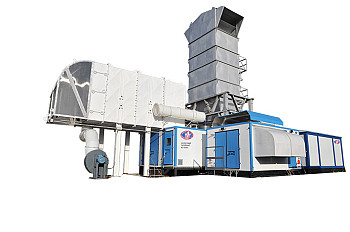

MS-10000-E
It is intended to provide 10 MW power supply for industrial and household consumers in basic and other operating modes. It has a modular-portable design. It operates in the temperature range from -60 °C to +50 °C. It may run on gaseous fuel in autonomous mode and in parallel with the mains. The drive is equipped with an electric starter.
|
 |
Main advantages:
- high quality of generated energy;
- high reliability;
- high ecological parameters;
- high transportability and plant preparedness level;
- the sets are equipped with all necessary equipment providing self-contained operation.
|
Basic specifications:
| Power, kW: |
| - rated |
10,000 |
| - maximum |
12,000 |
| Current |
AC, three-phase |
| Voltage, V |
6,300
|
| Frequency, Hz |
50 |
| Fuel |
gaseous (natural gas or associated petroleum gas)
|
| Drive net efficiency at rated load, %, not less than |
32.5 |
| Overall dimensions (when assembled), m: |
| length |
20 |
| - width |
11.5 |
| - height, not more than |
13.3 |
| Weight, kg |
95,000 |
|
|
|
