PAES-2500

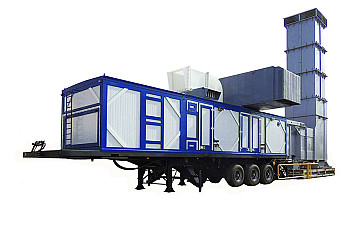

It is designed to provide 2.5 MW power supply for industrial and household consumers, for coverage of power deficiency at peak loads and for redundancy purposes. It is a mobile automated power-generating set. The power-generating set is equipped with an electric starting system, load acceptance system, protection and signaling systems, as well as modular noise-suppression system. It runs on both gaseous and liquid fuel, with the ability to switch from one type of fuel to another without removing the load.
|
 |
Main advantages:
- high reliability;
- works steadily as independent unit and in parallel with external power system;
- features high maintainability and is simple and easy to control;
- does not require big investments for putting into operation;
- transportability.
|
Basic specifications:
| Power, kW: |
|
| - rated |
2,500 |
| - maximum |
2,750 |
| Current |
AC, three-phase |
| Voltage, V |
6,300/10,500 |
| Frequency, Hz |
50/60 |
| Fuel |
natural and casing-head gas |
Drive net efficiency at rated load, %
(without regard to losses at the input and exhaust) |
24 |
Overall dimensions, m
(without noise suppressor) |
12.6 2x 2.62 x 3.79 |
Weight, kg
(without noise suppressors) |
39,000 |
|
|
|
