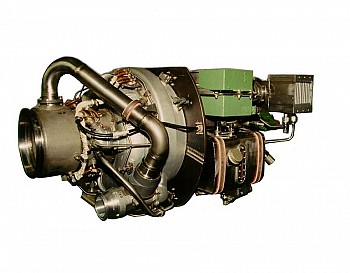

AI9-3B
It is used for using as auxiliary power unit in the aircraft.
For designing the engine the use was made of long-term experience of production and operation of the АI-9 basic engine making it possible to provide low production price, high reliability and long service life. The engine is used for starting the aircraft propulsion engines and air-conditioning of the cockpit and the passenger cabin, as well as electric supply to the onboard customers. |
 |
Main advantages of the engine:
- expansion of the range of aircraft utilization;
- reduction of propulsion engines operating time;
- improvement of safe aircraft maintenance;
- reduced expenditures for auxiliary ground facilities and maintenance manpower;
- availability of additional air and electric power source in flight up to 6000 m.
|
Basic specifications:
| (SLS, ISA+30°C): |
| AC aircraft electric system power supply, kV·A |
16 |
| Bled air flow, kg/s |
0.4 |
| Bled air pressure, kgf/cm2 |
3.3 |
| Bled air temperature, °C |
260 |
| Fuel consumption, kg/h, max |
92 |
| Total engine weight, kg |
132 |
|
|
|
