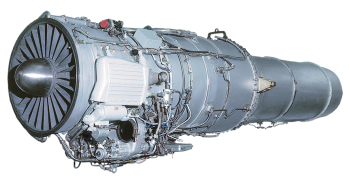

AI-25TL, AI-25TLK
The engines are used for trainers, the AI-25 engine versions are successfully operated in more than 40 countries of the world.
The engines are equipped with a special lubrication system ensuring standard operation at zero-g and negative-g load factors occurring when performing aerobatics. The engine features higher compressor pressure ratio and turbine inlet temperature making it possible to increase its maximum thrust up to 1,720 kgf. |
 |
Main advantages of the engine:
- high reliability, which ensures high flight safety;
- high level of gas-dynamic resistance to external excitations, including those caused by the airborne weapons;
- long service life as for the engine of the given purpose;
- low labor and time costs for maintenance;
- low cost of life cycle;
- possibility to further improvement of the engine characteristics with minor design changes.
|
Basic specifications:
| |
AI-25TL |
AI-25TLK |
| Maximum power rating (SLS, ISA) |
| Thrust, kgf (kN) |
1,720 (16.87) |
1,720 (16.87) |
| SFC, kg/kgf•h (kg/kN•h) |
0.575 (58.6) |
0.575 (58.6) |
| Overall dimensions, mm: |
|
|
| Length (with extension pipe) |
3,358 |
2,860 |
| Width |
868 |
865 |
| Height |
960 |
960 |
| Dry weight, kg |
350 |
350 |
|
|
|
