Gas-pumping units

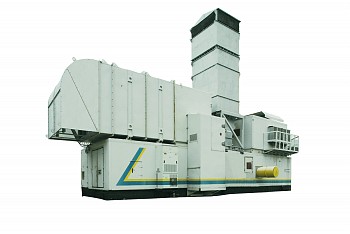

It is designed for transportation of natural gas through main gas pipelines, as well as for use at booster compressor stations of fields and underground gas storage facilities. It has a modular containerized design. 6.3 MW gas pumping unit is completed with all necessary equipment to ensure its independence in all modes as part of the compressor station.
|
 |
Main advantages:
- high economy;
- reliability and infallibility;
- high ecological standards;
- low cost of maintenance.
|
Basic specifications:
| Drive |
D-336-2 with electrically-assisted starting |
| Power turbine shaft power, kW: |
|
| - rated |
6,300 |
| - maximum |
7,560 |
| Fuel |
natural gas |
| Drive net efficiency, % |
31 |
| Booster unit |
6.3 GTs2-206/38-56S
with dry gas seals |
| Unit outlet ultimate pressure, MPa |
5.5 |
| Amount of pumped gas, mln. cu. m/day |
12.08 |
| Overall dimensions, m: |
|
| - length |
18.05 |
| - width |
5.95 |
| - height |
12.00 |
| Weight, t, max |
70.0 |
|
|
|
