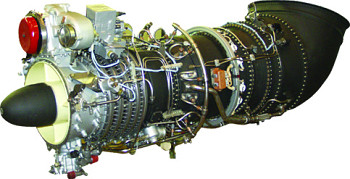

TV3-137
It is used as the gearbox drive with 1.07 MW output shaft power for mobile and stationary power-generating sets, pumping and compressor units, power plants for high-speed ships and land vehicles.
|
 |
Main advantages:
- high efficiency;
- low levels of pollutant emissions;
- low cost of maintenance;
- high reliability.
|
Basic specifications:
| Reduction gear output shaft rated power (ISA+12°C), kW |
1,070 |
| Reduction gear jutput shaft speed, min-1 |
1,000/1,200 |
| Fuel flow rate at rated power, kg/h: |
|
| - liquid fuel |
352 |
| - gas fuel |
320 |
| Net efficiency at rated load, % |
25 |
| Overall dimensions, mm |
2,055 x 650 x 728 |
| Weight, kg |
290 |
|
|
|
